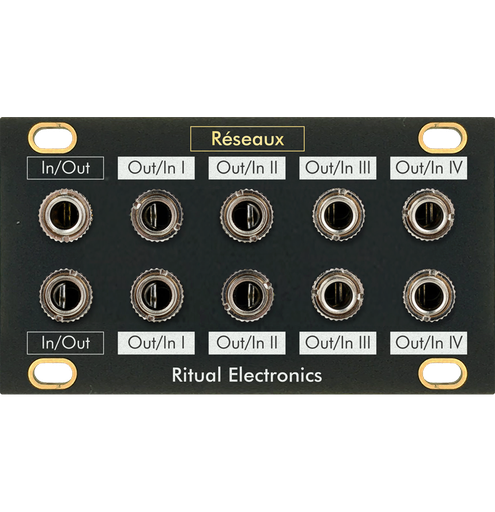

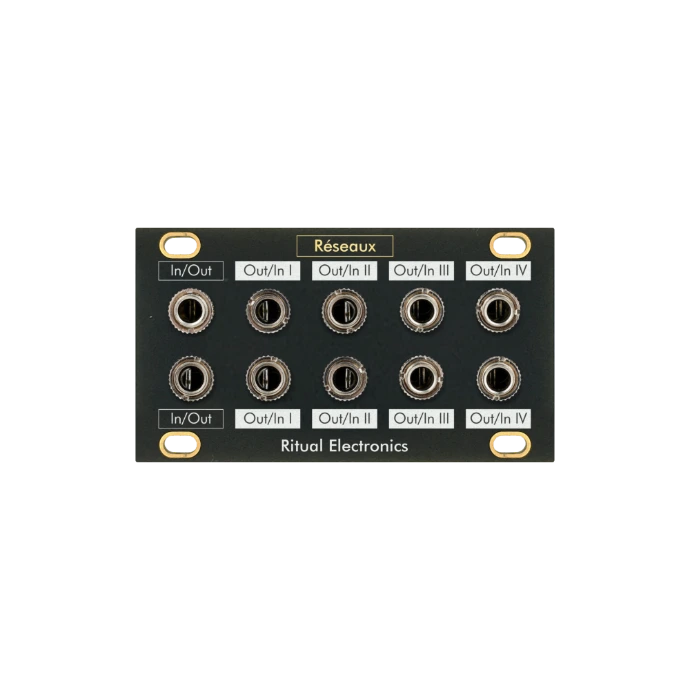

Réseaux is known as an R-2R ladder. It has two identical sections which you can cross patch
It is a bidirectional module meaning the inputs can be outputs and vice versa.
It has two main uses depending on the direction you are using the module.
– When using Réseaux with one input and multiple outputs you have attenuated copies of the input. Great to send a signal around. Specially if you have modules which do not have attenuators built in.
– When using one output and multiple inputs you have a mixer with set levels. It can mix both CVs and audio signals.
Specifications
Technical characteristics
- Passive mixer
- Passive attenuator
- Two identical sections
| Width | 14HP |
| Depth | 12mm |
| Power | +12V: 0mA -12V: 0mA +5V: 0mA |
| Modulargrid | Réseaux on Modulargrid |
| Manual | PDF Manual (EN) |
