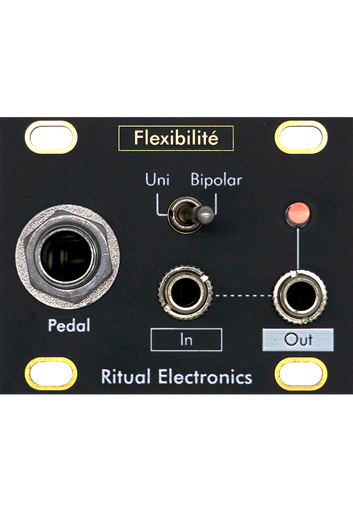

Flexibilité
RE1U002
Expression pedal adaptor
Flexibilité a.k.a the foot controlled attenuator / attenuverter.
Your third hand is your foot.
Flexibilité is a fairly simple module. Plug an expression pedal into it and use your foot to control your modules. By default it generates a 0-5V signal (unipolar) or a -5/+5V signal (bipolar), attenuated by the foot pedal.
Flexibilité has an input for external signals, so it can be used as a volume pedal on audio or attenuator/attenuverter on CV signals.
It has been praised by guitarists and bassists alike who want to control their modular while playing the strings.
For when you need that extra hand!
Specifications
Controls
- Expression pedal input
- External signal input
- Switch for Unipolar (0-5V) / Bipolar (-5/+5V)
Technical characteristics
- Buffered input & output
- Reverse polarity switch on the back of the module for compatibility with most expression pedals
| Width | 10HP Available with either Intellijel or Pulplogic format frontpanel |
| Depth | 35mm |
| Power | 10mA @ +12V 7mA @ -12V 0mA @ +5V |
| Modulargrid | Flexibilité on Modulargrid |
| Manual | PDF Manual (EN) |
